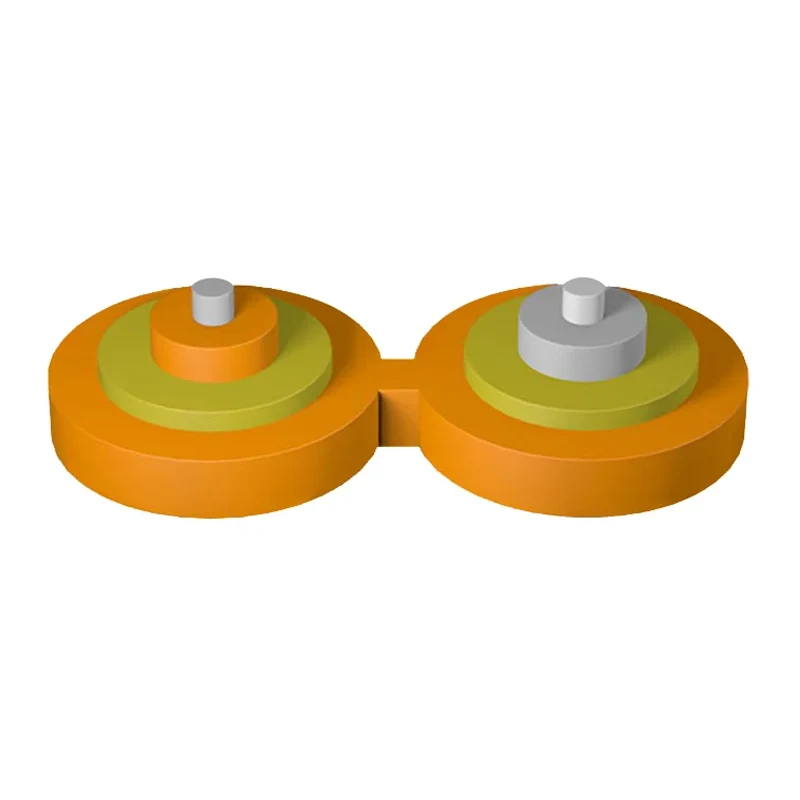

8-rasm Zipccord optik kabeli

Kabel modeli

Kabel diametri (ref)

(Mm)

Kabelning og'irligi (ref)

e o o o

TBF diametri

(Mkm)

Mustahkamlik chegarasi

Uzoq / qisqa muddat

(N)

Qattiq qarshilik

Uzoq / qisqa muddat

(N / 100mm)

Benming radiusi

Dinamik / statik

(mm)

Pvc ko'ylagi

Lsazh ko'ylagi

1.6

(3.4 ± 0.3) × (1.6 ± 0,3)

4.8

5.3

600 ± 50

40/80

100/500

60/30

1.9

(4.0 ± 0,3) × (1.9 ± 0,3)

8.0

8.7

900 ± 50

100/200

100/500

60/30

2.8

(5.8 ± 0.3) × (2,8 ± 0,3)

11.6

14.8

900 ± 50

100/200

100/500

60/30

Tola turi

Ziqna

Dan

Samarali rejimning samarali usuli

10 gbit / s ERNERLE HOZIR

Minimal Bendlar radius

Shart

1310 / 1550NM

850 / 1300NM

850 / 1300NM

850nm

850nm

/

Oddiy qiymat

Maksimal qiymat

Oddiy qiymat

Maksimal qiymat

Birlik

db / km

db / km

db / km

db / km

Mhz.km

Mhz.km

m

mm

G652D

0.36 / 0.22

0,5 / 0.4

-

-

-

-

-

16

G657A1

0.36 / 0.22

0,5 / 0.4

-

-

-

-

-

10

G657A2

0.36 / 0.22

0,5 / 0.4

-

-

-

-

-

7.5

50/125

-

-

3.0 / 1.0

3.5 / 1.5

≥500 / 500

-

-

30

62.5 / 125

-

-

3.0 / 1.0

3.5 / 1.5

≥200 / 500

-

-

30

Om3

-

-

3.0 / 1.0

3.5 / 1.5

≥1500 / 500

≥2000

≤300

30

Om4

-

-

3.0 / 1.0

3.5 / 1.5

O≥3500 / 500

≥4700

≤550

30
