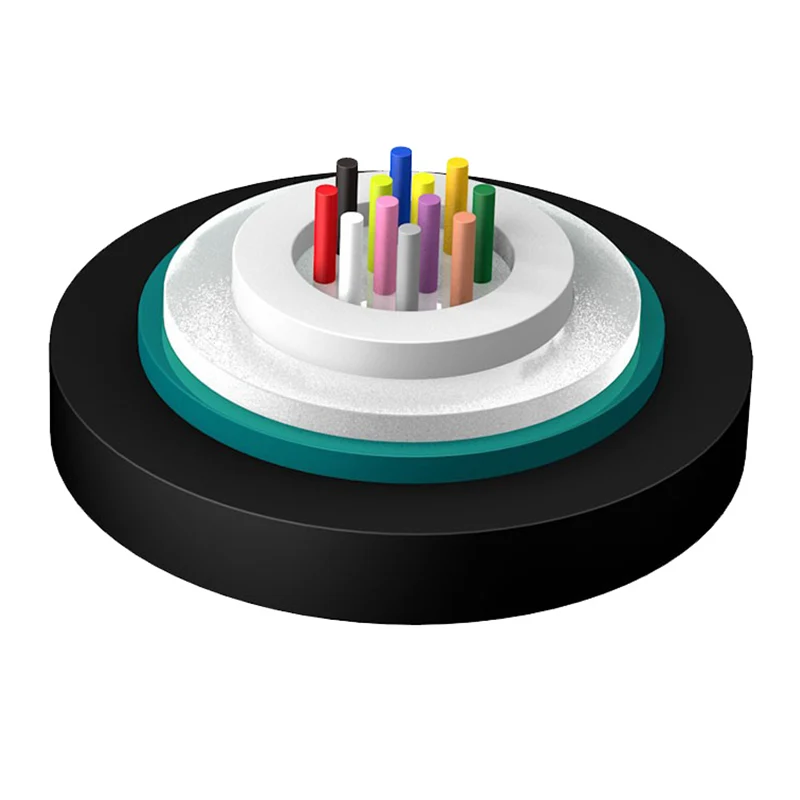

Aramid ipga kirish qurilishining optik kabeli

Kabel modeli

Tola samara

Kabelning og'irligi (ref)

(kg / km)

Mustahkamlik chegarasi

Uzoq / qisqa muddat

Qattiq qarshilik

Uzoq / qisqa muddat

(N / 100mm)

Benming radiusi

Dinamik / statik

(mm)

Abc-iis-zk-2 ~ 12xn

2 ~ 12

80

200/660

300/1000

10D / 20D

Abc-iis-zk-14 ~ 24xn

14 ~ 24

102

200/660

300/1000

10D / 20D

Tola turi

Ziqna

Dan

Samarali rejimning samarali usuli

10 gbit / s ERNERLE HOZIR

Minimal Bendlar radius

Shart

1310 / 1550NM

850 / 1300NM

850 / 1300NM

850nm

850nm

/

Oddiy qiymat

Maksimal qiymat

Oddiy qiymat

Maksimal qiymat

Birlik

db / km

db / km

db / km

db / km

Mhz.km

Mhz.km

m

mm

G652D

0.36 / 0.22

0,5 / 0.4

-

-

-

-

-

16

G657A1

0.36 / 0.22

0,5 / 0.4

-

-

-

-

-

10

G657A2

0.36 / 0.22

0,5 / 0.4

-

-

-

-

-

7.5

50/125

-

-

3.0 / 1.0

3.5 / 1.5

≥500 / 500

-

-

30

62.5 / 125

-

-

3.0 / 1.0

3.5 / 1.5

≥200 / 500

-

-

30

Om3

-

-

3.0 / 1.0

3.5 / 1.5

≥1500 / 500

≥2000

≤300

30

Om4

-

-

3.0 / 1.0

3.5 / 1.5

O≥3500 / 500

≥4700

≤550

30
