Mahsulot tavsifi

1x12 / 1 × 24 plc Splitter Streetter Plaster paketi 60x12x4 va 80x20x4mm, 900 mkroza bilan 30 + 0,1 / -0m, sc / APC ulagichiga ega.

Ishlash xususiyatlari:

Parametrlar	Belgi	Texnik xususiyatlari		Birlik
Kanal raqami	T	1 × 12	1 × 24
To'lqin uzunligi		1260 ~ 1650		nm
Tekshiruv to'lqin uzunligi		1310/1550		nm
Spektakl koeffitsient		8.333%	4.166%	%
Qo'shish yo'qotish1	Ilon	≤12.5	≤16.0	db
Bir xillik	Unli	≤1.2	≤1.6	db
Polarlashtirishga bog'liq yo'qotish	Pdl	≤0.35	≤0.40	db
Qaytish yo'qotish	Rl	≥55		db
Diritallik2	Dir	≥55		db
Kirish optik kuch	P	100		mw
Tola turi		ITU-T G657 A1 tolasi
Pigtail turi		Barcha port: oq 900 mmm bo'shashgan naycha
Kirish uzunligi		1.0 + 0.1 / -0		m
Chiqish uzunligi		1.0 + 0.1 / -0		m
Ulagich		Barcha port: Sc / APC
Kabel belgisi		1x12 plc: 1,2 ... 11, 12 1x24 plc: 1,2 ... 23, 24
Paket o'lchamini (l) × (w) × (h)	Pkg	1x12 plc: 60x12x4 1x24 plc: 80x20x6		mm
Operatsion harorat	Eng yuqori	-40 ~ +85		℃
Saqlash harorati	Shpal	-40 ~ +85		℃

* Izohlar: 1. Barcha kiritish uchun yo'qotish qiymatlari ulagichning yo'qolishini o'z ichiga oladi.

Eketch xaritasi:

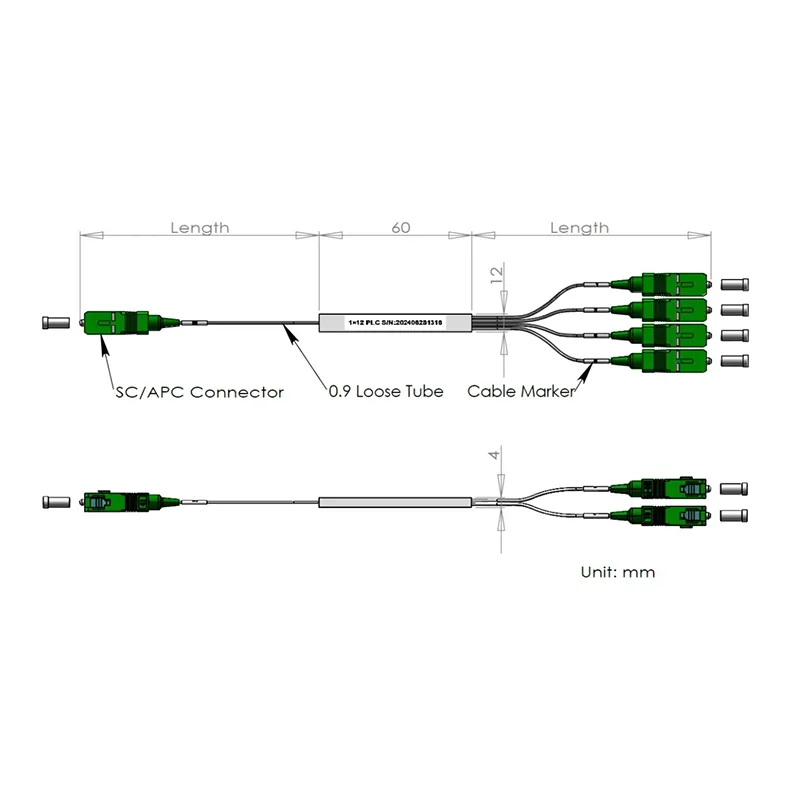

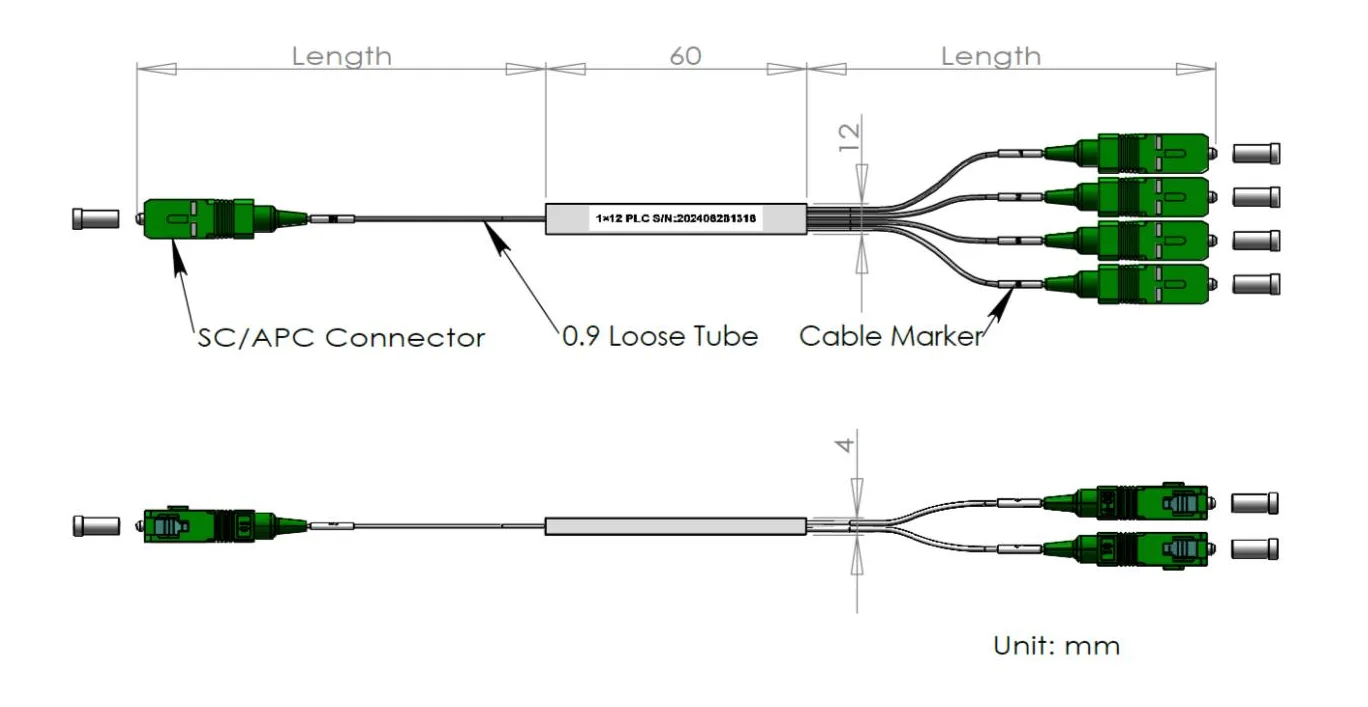

1x12 plc splitter

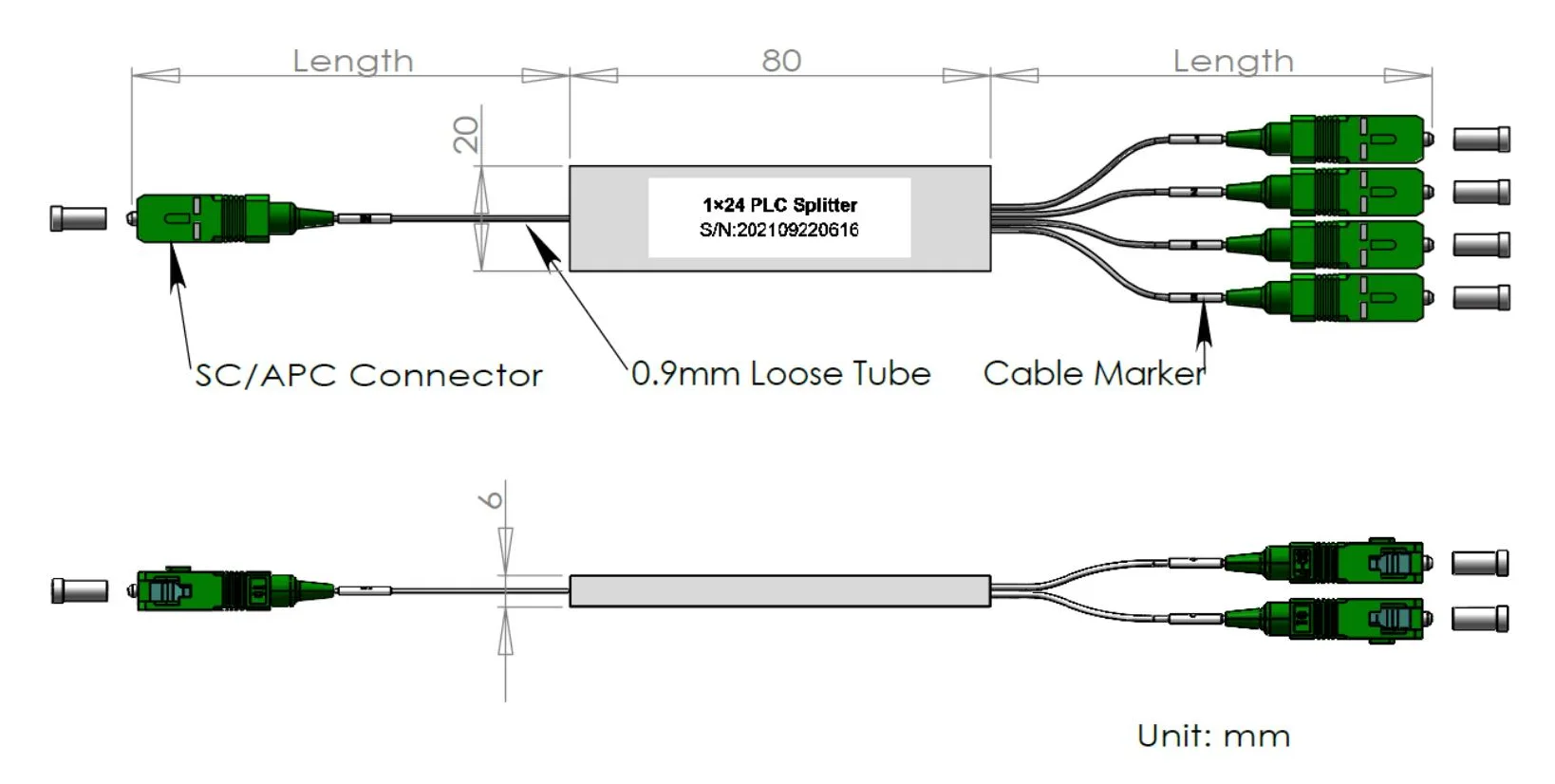

1x24 plc Splitter

Test hisoboti:

1. Qadoqlash uchun aniq qiymatlar bilan sinov hisobotini tanlang.

Misol haqida hisobot: 1x12 mini 0.9MM plc Splitter Ma'lumotlar varag'i

To'lqin uzunligi (nm)	1260-1650	Tekshirilgan sana	2024/11/30
P / N:	1x12-0.9 - 1,0 metrdan 1,0 m echapc	Gunoh:	21113000001
Tola turi	G657A2	Tola uzunligi (m)	In≥,1,0 m / tashqarida> 1,0 m
Ulagich turi	Skiapc	Paket o'lchami (mm)	60x12x4
Saqlash harorati	-40 ~ + 85 ℃	Ishlash harorati	-40 ~ + 85 ℃

ltmoq	(Db)		PDL (DB)		Rl (db)
To'lqin uzunligi (nm)	@ 1310	@ 1550	@ 1310	@ 1550	@ 1310	@ 1550
Maxsus xususiyat.	Max.12.50		Maks.0.35		≥55
1 port	12.43	12.38	0.14	0.07	Pas	Pas
Port 2	12.24	12.35	0.16	0.06	Pas	Pas
3 port 3	12.22	12.20	0.12	0.07	Pas	Pas
4 port 4	12.30	12.24	0.04	0.04	Pas	Pas
5 port 5	12.24	12.25	0.11	0.05	Pas	Pas
Port 6	12.35	12.29	0.11	0.01	Pas	Pas
Port 7	12.42	12.44	0.21	0.11	Pas	Pas
8 port 8	12.23	12.18	0.11	0.01	Pas	Pas
9 port 9	12.27	12.19	0.21	0.10	Pas	Pas
10 port	12.38	12.17	0.02	0.04	Pas	Pas
Port 11	12.29	12.21	0.11	0.06	Pas	Pas
Port 12	12.42	12.27	0.08	0.07	Pas	Pas
Kirish	Nod				Nod
Mix	12.43	12.44	0.21	0.11	N / a
Min.	12.22	12.18	0.04	0.01	N / a
O'rtacha	12.30	12.29	0.13	0.05	Nod
Bir xillik (≤0.8db)	0.21	0.27	Db)		> 55
