1 * 4 1 * 8 plc splitter (yalang'och tolali tur)

1x4 / 1 × 8 plc Splitter Plitter Paket 40x4x4mm, 250 mlrdrey 2.5 + 0.1 / -0M, yo'q ulagich.Ishlash xususiyatlari:ParametrlarBelgiTexnik xususiyatlariBirlikKanal raqamiT1 × 41 × 8To'lqin uzunligi1260 ~ 1650nmTekshiruv to'lqin uzunligi1310/1550nmSpektakl koeffitsient25%12,5%......

So'rov yuborish

Mahsulot tavsifi

1x4 / 1 × 8 plc Splitter Plitter Paket 40x4x4mm, 250 mlrdrey 2.5 + 0.1 / -0M, yo'q ulagich.

Ishlash xususiyatlari:

Parametrlar	Belgi	Texnik xususiyatlari		Birlik
Kanal raqami	T	1 × 4	1 × 8
To'lqin uzunligi		1260 ~ 1650		nm
Tekshiruv to'lqin uzunligi		1310/1550		nm
Spektakl koeffitsient		25%	12,5%	%
Qo'shish yo'qotish1	Ilon	Ítatsiya	≤10.5	db
Bir xillik	Unli	≤0.60	≤0.80	db
Polarlashtirishga bog'liq yo'qotish	Pdl	≤0.20	≤0.20	db
Qaytish yo'qotish	Rl	≥55		db
Diritallik2	Dir	≥55		db
Kirish optik kuch	P	100		mw
Tola turi		G657 A2 tolasi
Pigtail turi		Inport: 250 mkm yalang'och tola
Pigtail turi		1 ~ 4ch Impport: 1 * 4 kanal 250 ta tolali lentasi 1 ~ 8ch IPRORT: 2 * 4 kanal 250 tolali lentasi
Kirish uzunligi		2.5 + 0.1 / -0		m
Chiqish uzunligi		2.5 + 0.1 / -0		m
Ulagich		Barcha port: hechiz ulagich
Tola rangi		Inport: Tabiiy rang
		1 ~ 4ch Impport: ko'k, apelsin, yashil, jigarrang,
		1 ~ 8ch Impport: ko'k, apelsin, yashil, jigarrang, Kulrang, oq, qizil, qora
Paket o'lchami	Pkg	40 (l) × 4 (V) × 4 (H)		mm
Operatsion harorat	Eng yuqori	-40 ~ +85		℃
Saqlash harorati	Shpal	-40 ~ +85		℃

* Izohlar: 1

Eketch xaritasi:

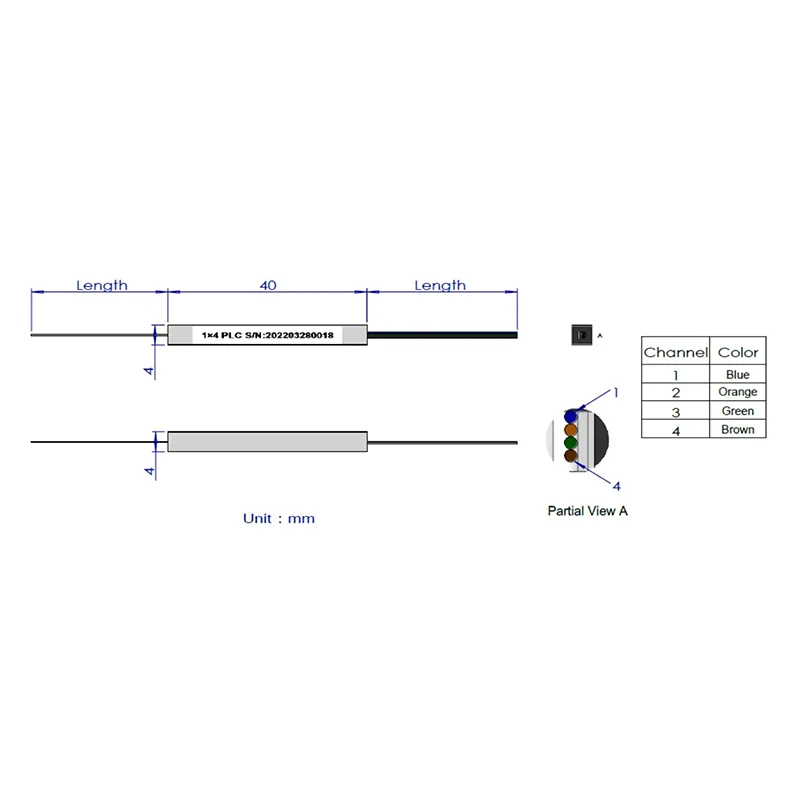

1x4 plc Splitter

1x4 PLC Splitter

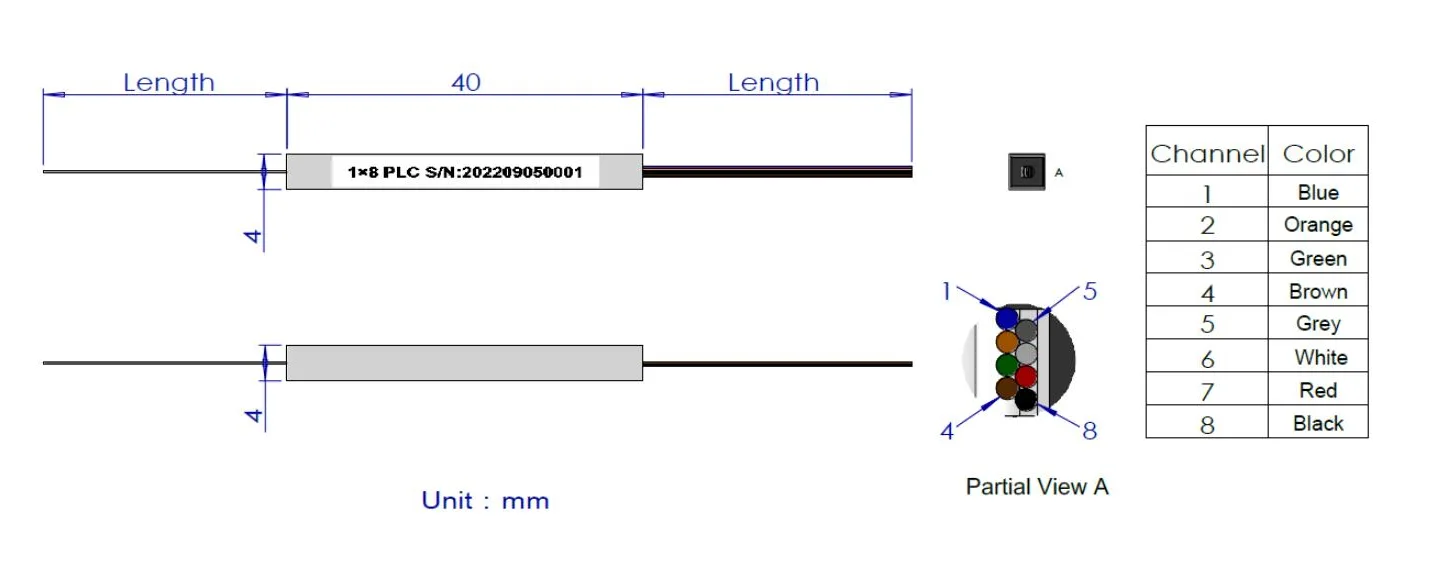

1x8 plc splitter

1x8 PLC Splitter

Buyurtma ma'lumot

Plek

Plc turi

To'lqin uzunligi

Box turi

Tola turi

Tola uzunligi

Ulagich

Plc splitter

102 = 1x2

104 = 1x4

108 = 1x8

116 = 1x16

132 = 1x32

164 = 1x64

204 = 2x4

208 = 2x8

216 = 2x16

232 = 2x32

264 = 2x64

1 = 1310nm

2 = 1550nm

3 = 1310 va 1550NM

4 = 1260 ~ 1650nm

X = Maxsus

1 = metall truba + yalang'och tola

1 = metall naycha + bo'shashuv naychasi

2 = 90x20x10 ABS quti

3 = 100x80x10 ABS quti

4 = 120x80x18 abs qutisi

5 = 140x120x20 ABS quti

6 = metall qutisi

7 = 1RU 19 "Ruk tog'i

X = Maxsus

1 = g652d

2 = G657A1

3 = g657a2

X = Maxsus

1 = 0,5m

2 = 1m

3 = 2m

4 = 3m

5 = adapter

X = Maxsus

1 = hech narsa 2 = FC / UPC

3 = FC / APC

4 = LC / UPC

5 = LC / APC

6 = sc / gpc

7 = Sc / APC

X = Maxsus
