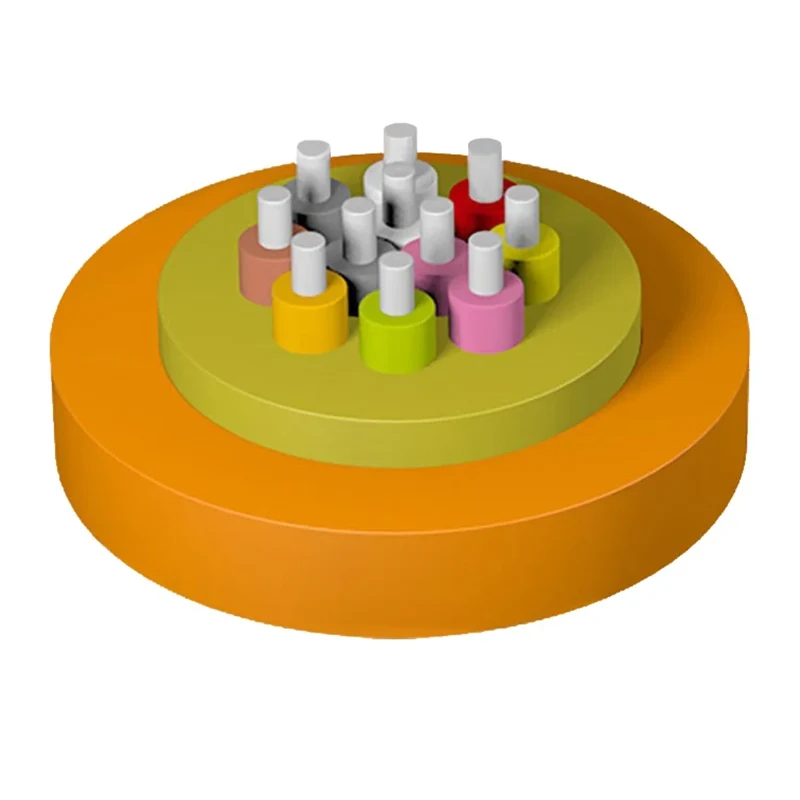

Ko'p maqsadli tarqatish optik kabeli (≤24f)

Kabel modeli

Kabel diametri (ref)

(mm)

Kabelning og'irligi (ref)

(kg / km)

Mustahkamlik chegarasi

Uzoq / qisqa muddat

(N)

Qattiq qarshilik

Uzoq / qisqa muddat

(N / 100mm)

Benming radiusi

Dinamik / statik

(mm)

Pvc ko'ylagi

Lsazh ko'ylagi

04

4.8 ± 0.3

16

18

130/440

300/1000

20d / 10d

06

5.1 ± 0.3

20

23

130/440

300/1000

20d / 10d

08

5.6 ± 0.3

27

31

130/440

300/1000

20d / 10d

12

6.2 ± 0.3

32

36

130/440

300/1000

20d / 10d

24

8.1 ± 0.3

53

57

200/660

300/1000

20d / 10d

Tola turi

Ziqna

Dan

Samarali rejimning samarali usuli

10 gbit / s ERNERLE HOZIR

Minimal Bendlar radius

Shart

1310 / 1550NM

850 / 1300NM

850 / 1300NM

850nm

850nm

/

Oddiy qiymat

Maksimal qiymat

Oddiy qiymat

Maksimal qiymat

Birlik

db / km

db / km

db / km

db / km

Mhz.km

Mhz.km

m

mm

G652D

0.36 / 0.22

0,5 / 0.4

-

-

-

-

-

16

G657A1

0.36 / 0.22

0,5 / 0.4

-

-

-

-

-

10

G657A2

0.36 / 0.22

0,5 / 0.4

-

-

-

-

-

7.5

50/125

-

-

3.0 / 1.0

3.5 / 1.5

≥500 / 500

-

-

30

62.5 / 125

-

-

3.0 / 1.0

3.5 / 1.5

≥200 / 500

-

-

30

Om3

-

-

3.0 / 1.0

3.5 / 1.5

≥1500 / 500

≥2000

≤300

30

Om4

-

-

3.0 / 1.0

3.5 / 1.5

O≥3500 / 500

≥4700

≤550

30
