1. Umumiy

1.1 tavsifi

FTTx tarmoqlarini taqsimlashning eng ilg'or uskunalari kabi optik taqsimot qutisi sifatida oldindan va ishonchli aloqa, FTTx tarmog'ini yaxshilash va boshqarish.

Ishlab chiqarish turi	Tasniflash
Gfs-004-002C	ULTA-ulactorited tolali kabel taqsimlash qutisi

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

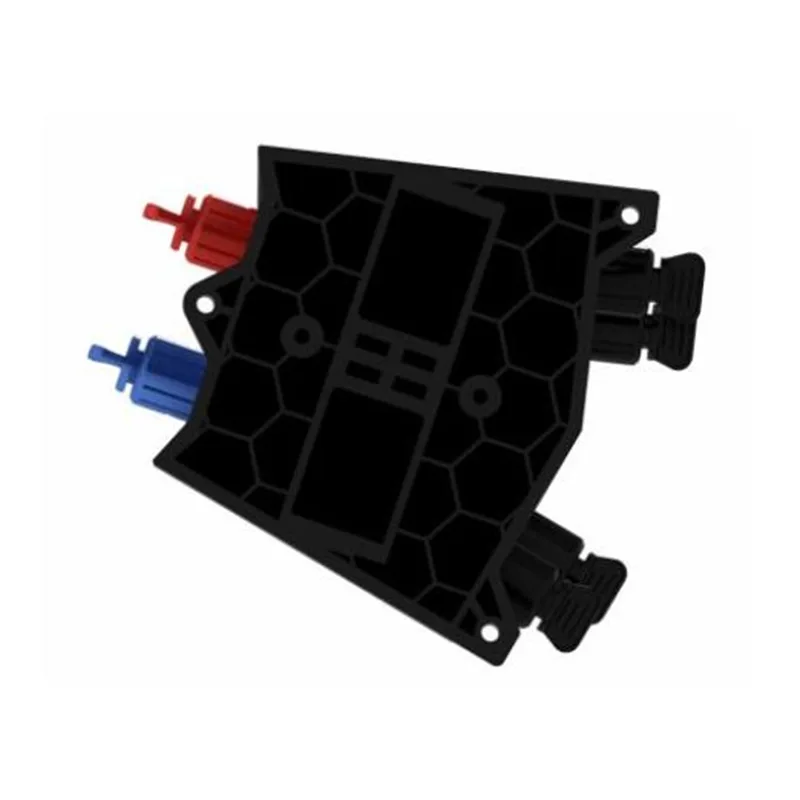

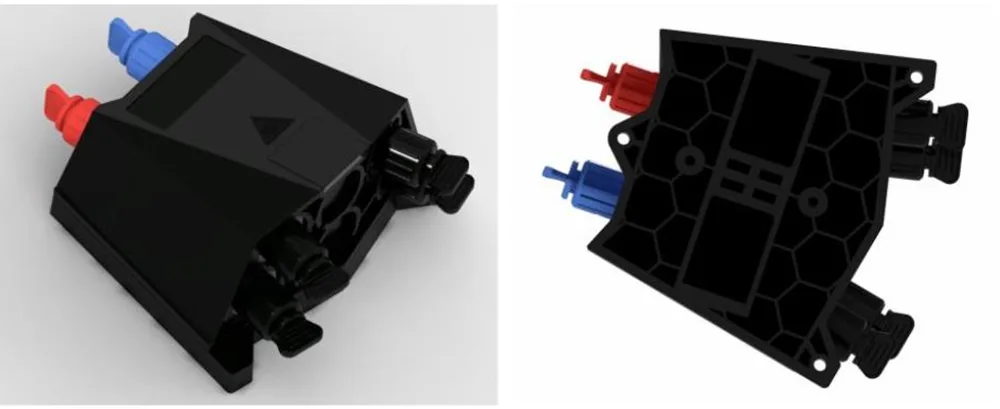

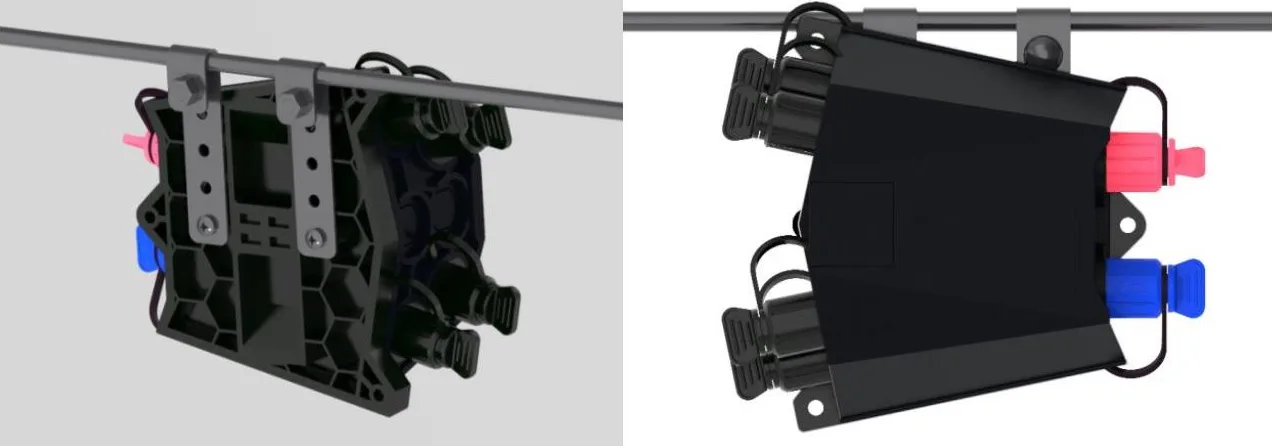

GFS-004-002C ning ko'rinishi

1.2 standart

Takliflar standartlarga muvofiq ishlab chiqarilgan, ishlab chiqarilgan va sinovdan o'tgan.

Bu-t g.652	Bitta model optik tolasining xususiyatlari
IEC 60794-1-1	Optik tolali kabellar - 1-qism: umumiy spetsifikatsiya-umumiy
IEC 60794-1--------2	Optik tolali kabellar-1-5: Umumiy spetsifikatsiya-asosiy optik kabelni tekshirish tartibi

1.3 Ilovalar Atrof

Buyum	Qiymati
Operatsion harorat	-40 ºC ~ + 65 ºC
O'rnatish harorati	-5 ºC ~ + 40 ºC
Saqlash harorati	-0ºC ~ + 65 ºC
Atmosfera bosimi	70 ~ 106KPA
Nisbiy namlik	≤93% (+ 40 ℃)

2. Xususiyatlar

1. Pastki qobiq va yuqori qopqoq issiq plastinka payvandlash bilan payvandlanadi, u olinmaydi.

2. Material: pp + gf.

3. Namlikning isboti, suv o'tkazmaydigan, changga chidamli, qarishga qarshi.

4. Xavfsizlik darajasi IP68-ga qadar.

5. Ichki makon 1x2 fbktli spteritter + 1x4 plit spitri yoki 1x4 plc spteritter bilan jihozlangan.

3. Texnik xususiyatlari

3.1 Mexanik shartlar

Buyum	Texnik xususiyatlari	Izoh
Uy-joyning materiallari	Pp + gf
Metall aksessuarining materiallari	Yuqori sifatli zanglamaydigan po'lat

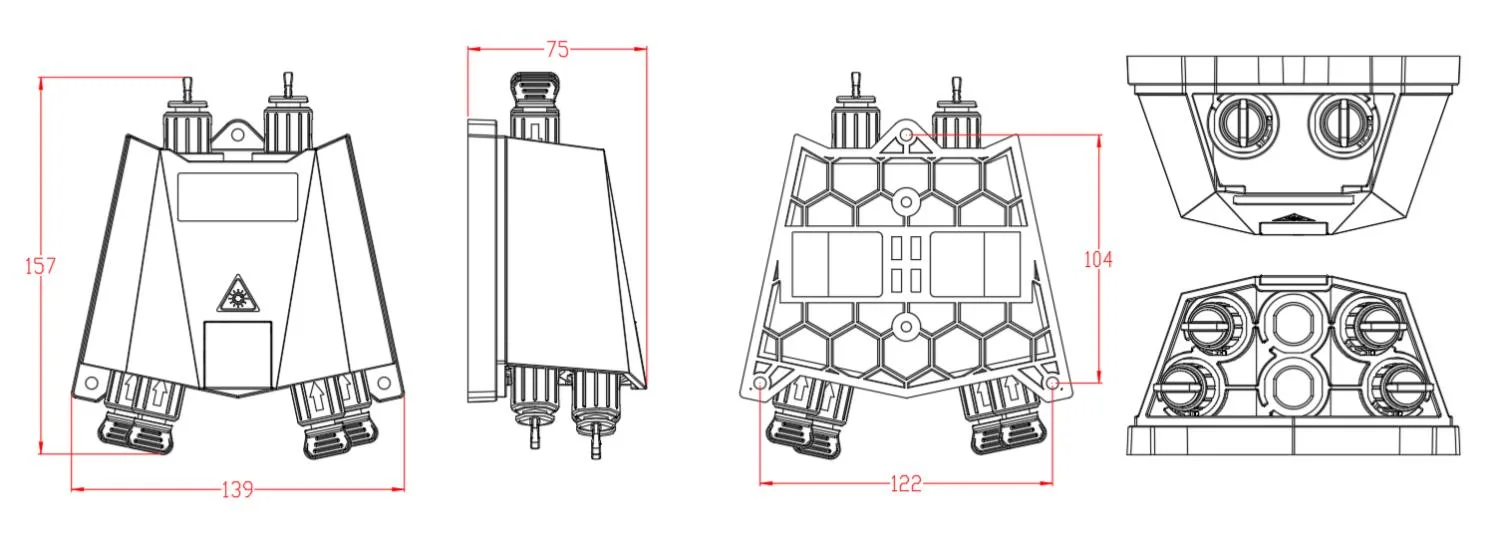

Tashqi o'lcham (mm)	157 * 139 * 75MM
Rang	Qora
O'rnatish teshigi holati (mm)	122 * 104
Oldindan ulash-ulash moslamasi soni	10
Ezma	1x2 FBT Splitter + 1x4 plc splitter
Ip	IP68
Xamirlik	Ul94-hB	Bajarilish
Neytral tuz püskürtülen testi (NSS)	48H	Bajarilish

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

4. Konfiguratsiya

Asosiy optik parametrlar

Ezma	(Db)		Rl (db)	(Db)	Sinov usuli
Ezma	Ezma			Tarqatish qutisi	Sinov usuli
1 * 2 FBT (90/10) + 1 * 4 PLC Splitter, ScAPC ulagichi bilan	1 * 2 FBT (90%)	Lifol	≥55	≤1.2	Il: IEC61300-3-4 usuli b Rl: IEC61300-3-6 1 usuli
	1 * 2 FBT (10%) + 1 * 4 plc	≤18.60	≥55	≤18.80
1 * 2 FBT (80/20) + 1 * 4 plc Splitter, ScAPC ulagichi bilan	1 * 2 FBT (80%)	≤1. 40	≥55	≤1.6
	1 * 2 FBT (20%) + 1 * 4 plc	≤15.5	≥55	≤15.7
1 * 2 fbt (70/30) + 1 * 4 plc Splitter, ScAPC ulagichi bilan	1 * 2 FBT (70%)	≤2.1	≥55	≤2.5
	1 * 2 FBT (30%) + 1 * 4 plc	≤13.4	≥55	≤13.6
1 * 2 FBT (60/40) + 1 * 4 PLC Splitter, ScAPC ulagichi bilan	1 * 2 FBT (60%)	≤2.8	≥55	Livet
	1 * 2 FBT (40%) + 1 * 4 plc	≤12.3.3	≥55	≤12.5
1 * 2 FBT (50/50) + 1 * 4 plc Splitter, ScAPC ulagichi bilan	1 * 2 FBT (50%)	≤3.7	≥55	≤3.9
	1 * 2 FBT (50%) + 1 * 4 plc	№111.2	≥55	≤11.4
1 * 4 plc Splitter, ScAPC ulagichi bilan	1 * 4 plc	≤7.1	≥55db	≤7.3

Yuqoridagi jadvalda ko'rsatilgan optik parametrlar standart qiymatlardir va talablarga muvofiq sozlanishi mumkin.

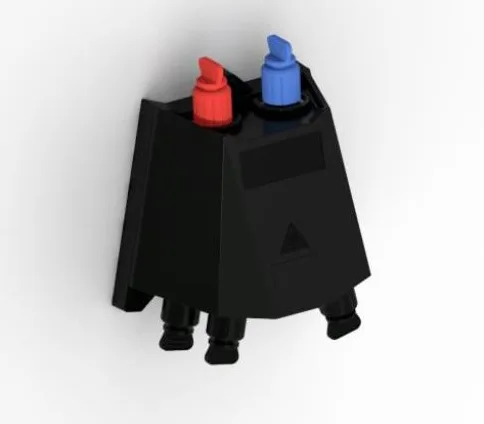

5. Mahsulot rasm

5.1 Mahsulot kabeli usullari:

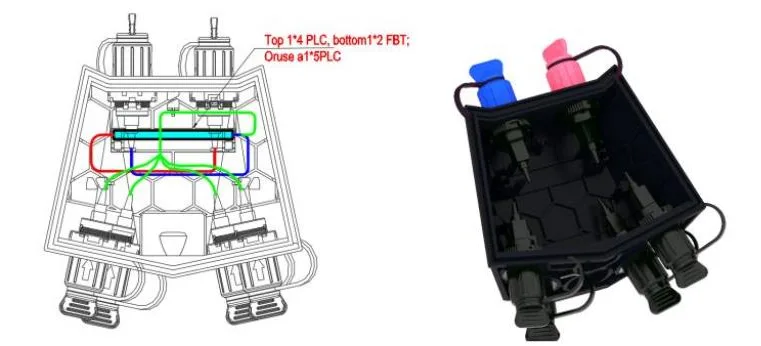

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

1 * 2 FBT + 1 * 4 PLC Splitter kabel usullari

5.2 Aksessuarlar

Yo'q	Qism nomi	Ma'lumot rasmlari	Birlik	Miqdori	Izoh
1	Foydalanuvchilar	/	kompyuterlar	1	Ichida
2	Spterter sinovi hisoboti	/	kompyuterlar	1	Ichida

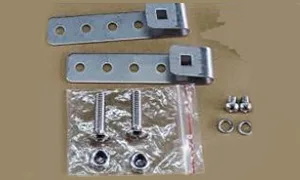

3	Devorga o'rnatilgan to'plam		sozlamoq	1	Mijozning talabi sifatida ixtiyoriy
4	Qutb o'rnatilgan to'plam		sozlamoq	1	Mijozning talabi sifatida ixtiyoriy
5	Havo o'rnatilgan kit		sozlamoq	1	Mijozning talabi sifatida ixtiyoriy

6. Atrof-muhit xususiyatlari

Ushbu mahsulot Roh ekologik himoya qilish bo'yicha ko'rsatmalariga va qo'rg'oshin, kadmiy, simob, hexavalent xromining mazmuni, polibriny Bipenyl (PBDE) chegarasidan oshmaydi.

7. O'rnatish

7.1. Devorga o'rnatiladigan o'rnatish

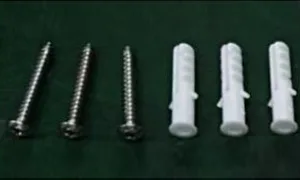

Devordagi 3 teshikli burg'ulash hajmi bo'yicha kengayish, kengaytirish plag plagin plag plag plaginini joylashtiring, qutilarni mahkamlang va mahkamlang.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

Devor o'rnatilgan o'rnatish

7.2. Qutbli o'rnatish

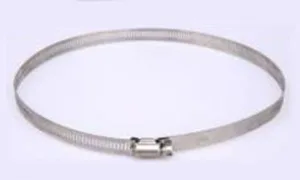

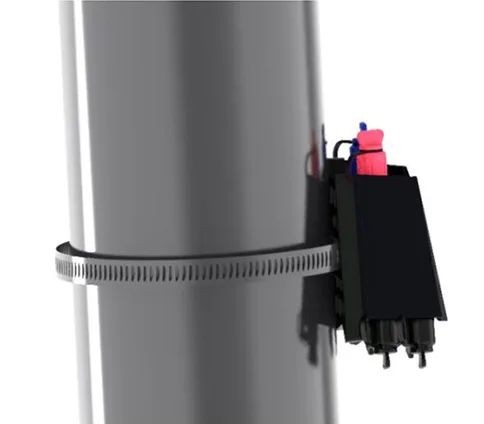

Xolli uzukni orqa plastinkaning uyasi orqali o'ting va uni telekommunikatsiya qutbiga mahkamlang.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

Pole o'rnatilgan o'rnatish

7.3. Ortiqcha tuzilish

O'rnatilgan panjaradagi shasnda simga osilgan va keyin murvatlar o'rnatilgan holda, ishning oldini olish.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

Ortiqcha tuzilish

8. Urug 'ishlashi

8.1 Oldindan ulangan adapter - a (e)

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

O'q tepasidagi arrow to tola ulagichini rozetkaga joylashtiring, so'ngra strelka soat yo'nalishi bo'yicha o'qni aylantiring.

8.2 Oldindan ulangan adapter - b (XL)

Sc optik tola ulagichini bo'sh qismlarini o'z navbatida ulang va keyin adapterga ulang;

 XL-ni plastik kalitli adapterda oldindan ulangan adapterni o'rnating;

The Snap-ning vilkasini qaka ichiga joylashtiring;

⚫ Kabel qisqichlari o'rnatiladi va chiziq vilkaga yaqin bo'lishi kerak;

⚫ Teri kabeli qisqichbaqasimon pechkaning qopqog'ini burch

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

8.3 Oldindan ulangan adapter - c

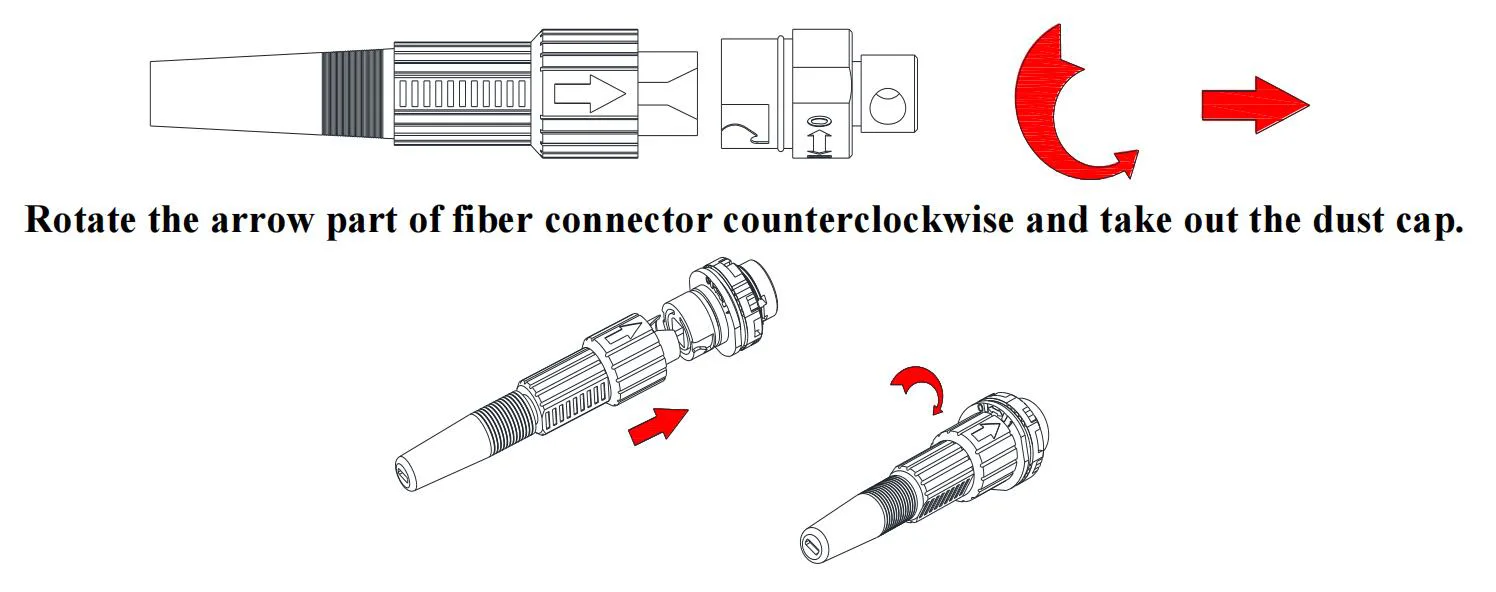

The chang qopqog'ini olib tashlash uchun strelka yo'nalishi bo'yicha optik tolaga prefored vilkasiga suring. O'q yo'nalishi bo'yicha adapterdagi chang qopqog'ini olib tashlash uchun tugmani bosing.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

The Trafyorlangan vilkasini adapter qisqichbaqasi bilan mahkamlang. Ikki chang qopqoqlarini xuddi shu tarzda ulang.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

⚫ O'rnatilgan yig'imli vilka tog 'uzukni qisib qo'yadi va keyin asosiy tanani orqaga ajratish uchun orqaga torting.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

8.4 Oldindan ulangan adapter - d

 O'q hajmining soat yo'nalishi bo'yicha oldindan ulangan vilkasini aylantiring va strelka yo'nalishi bo'yicha oldindan ulangan vilka va chang qopqog'ini oching.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

⚫ Oldinga ulangan plug d va oldindan ulangan adapter d stent yo'nalishi bo'yicha ulang va soat yo'nalishi bo'yicha vilkasini mahkamlash uchun aylantiring.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

8.5 Oldindan ulangan adapter - e (a)

 STREMning soat miliga teskari tomonga o'ting va strelka yo'nalishi bo'yicha oldindan ulangan vilka va chang qopqog'ini oching

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

Tasma ulangan plug e va oldindan ulangan adapterni strelka yo'nalishi bo'yicha ulang va uni o'rnating.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

8.6 Oldindan ulangan adapter -f (sc)

Sc optik tola ulagichini bo'sh qismlarini o'z navbatida ulang va keyin adapterga ulang;

 XL-ni plastik kalitli adapterda oldindan ulangan adapterni o'rnating;

The Snap-ning vilkasini qaka ichiga joylashtiring;

⚫ Kabel qisqichlari o'rnatiladi va chiziq vilkaga yaqin bo'lishi kerak;

Teridagi charm kabel kabeli kelegichasini burim bilan vidalang.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

8.7 Oldindan ulangan adapter - g

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

9. Paket

Buyum	Material	Hajmi (mm)	Miqdori	Yalpi vazn (kg)
Mustaqil mahsulotni qadoqlash	Karton	170x150x85	1	0.6
Tashqi qadoqlash karton	Karton	360x320x465	20	13
Eslatma: kabelni saqlashning tortagisiz
