1. Umumiy

1.1 tavsifi

FTTx tarmoqlarini taqsimlashning eng ilg'or uskunalari kabi optik taqsimot qutisi sifatida oldindan va ishonchli aloqa, FTTx tarmog'ini yaxshilash va boshqarish.

Ishlab chiqarish turi	Tasniflash
Gfs-8y &1	ULTA-ulactorited tolali kabel taqsimlash qutisi

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

1.2 standart

Takliflar standartlarga muvofiq ishlab chiqarilgan, ishlab chiqarilgan va sinovdan o'tgan.

Bu-t g.652	Bitta model optik tolasining xususiyatlari
IEC 60794-1-1	Optik tolali kabellar - 1-qism: umumiy spetsifikatsiya-umumiy
IEC 60794-1--------2	Optik tolali kabellar-1-5: Umumiy spetsifikatsiya-asosiy optik kabelni tekshirish tartibi

1.3 Ilovalar Atrof

Buyum	Qiymati
Operatsion harorat	-40 ºC ~ + 65 ºC
O'rnatish harorati	-5 ºC ~ + 40 ºC
Saqlash harorati	-0ºC ~ + 65 ºC
Atmosfera bosimi	70 ~ 106KPA
Nisbiy namlik	≤93% (+ 40 ℃)

2. Xususiyatlar

1. Pastki qobiq va yuqori qopqoq issiq plastinka payvandlash bilan payvandlanadi, u olinmaydi.

2. Material: HP.

3. Namlikning isboti, suv o'tkazmaydigan, changga chidamli, qarishga qarshi.

4. Xavfsizlik darajasi IP68-ga qadar.

5. Ichki makon 1x2 fbktli spteritter + 1x8 plc spetter yoki 1x8 plc spitteri bilan jihozlangan.

3. Texnik xususiyatlari

3.1 Mexanik shartlar

Buyum	Texnik xususiyatlari	Izoh
Uy-joyning materiallari	O'zgartirilgan HP plastmassa
Metall aksessuarining materiallari	Yuqori sifatli zanglamaydigan po'lat

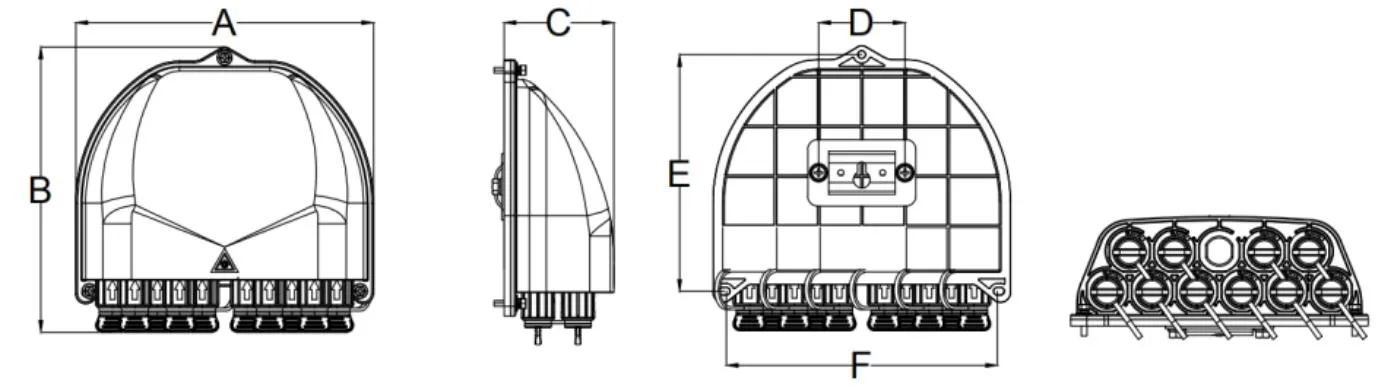

Tashqi o'lcham (mm)	171 * 179 * 66mm	A * b * c
Rang	Qora
O'rnatish teshigi holati (mm)	52 * 142 * 165	D * e * f
Oldindan ulash-ulash moslamasi soni	10	Gfs-8by (1 qizil, 1 ko'k, 8 qora)
Oldindan ulash-ulash moslamasi soni	9	Gfs-8by-1 (1 qizil, 8 qora)
Ezma	1x2 fbt Splitter + 1x8 plc splitter	Gfs-8by, standart nisbati 1x2 FBT Splitter 70% / 30%
Ezma	1x8 plc splitter	Gfs-8b-1
Ip	IP68
Xamirlik	Ul94-hB	Bu ehtiyojlarga muvofiq sozlanishi mumkin.
Neytral tuz püskürtülen testi (NSS)	48H	Bu ehtiyojlarga muvofiq sozlanishi mumkin.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

4. Konfiguratsiya

Asosiy optik parametrlar

Model	Ezma	(Db)		Rl (db)	(Db)	Sinov usuli
Model	Ezma	Ezma			Tarqatish qutisi	Sinov usuli
Gfs-8bi	1 * 2 FBT (90/10) + 1 * 8 plc splitter, ScAPC ulagichi bilan	1 * 2 FBT (90%)	≤8.3	≥55db	≤1.03	Il: IEC61300-3-4 usuli b Rl: IEC61300-3-6 1 usuli
		1 * 2 FBT (10%) + 1 * 8 plc	≤21.7	≥55db	≤21.9
	1 * 2 FBT (80/20) + 1 * 8 plc splitter, ScAPC ulagichi bilan	1 * 2 FBT (80%)	≤1.4	≥55db	≤1.6
		1 * 2 FBT (20%) + 1 * 8 plc	≤18.3	≥55db	≤18.5
	1 * 2 FBT (70/30) + 1 * 8 plc splitter, ScAPC ulagichi bilan	1 * 2 FBT (70%)	≤2.1	≥55db	≤2.3
		1 * 2 FBT (30%) + 1 * 8 plc	≤16.5	≥55db	≤16.7
	1 * 2 FBT (60/40) + 1 * 8 plc splitter, ScAPC ulagichi bilan	1 * 2 FBT (60%)	≤2.8	≥55db	≤3.0
		1 * 2 FBT (40%) + 1 * 8 plc	≤15.2	≥55db	≤15.4
	1 * 2 FBT (50/50) + 1 * 8 plc splitter, ScAPC ulagichi bilan	1 * 2 FBT (50%)	≤3.8	≥55db	≤4.0
		1 * 2 FBT (50%) + 1 * 8 plc	≤14.3	≥55db	≤14.5
Gfs-8b-1	1x8 plc splitter, ScAPC ulagichi bilan	1 * 8 plc	≤10.5	≥55db	≤10.7

Yuqoridagi jadvalda ko'rsatilgan optik parametrlar standart qiymatlardir va talablarga muvofiq sozlanishi mumkin.

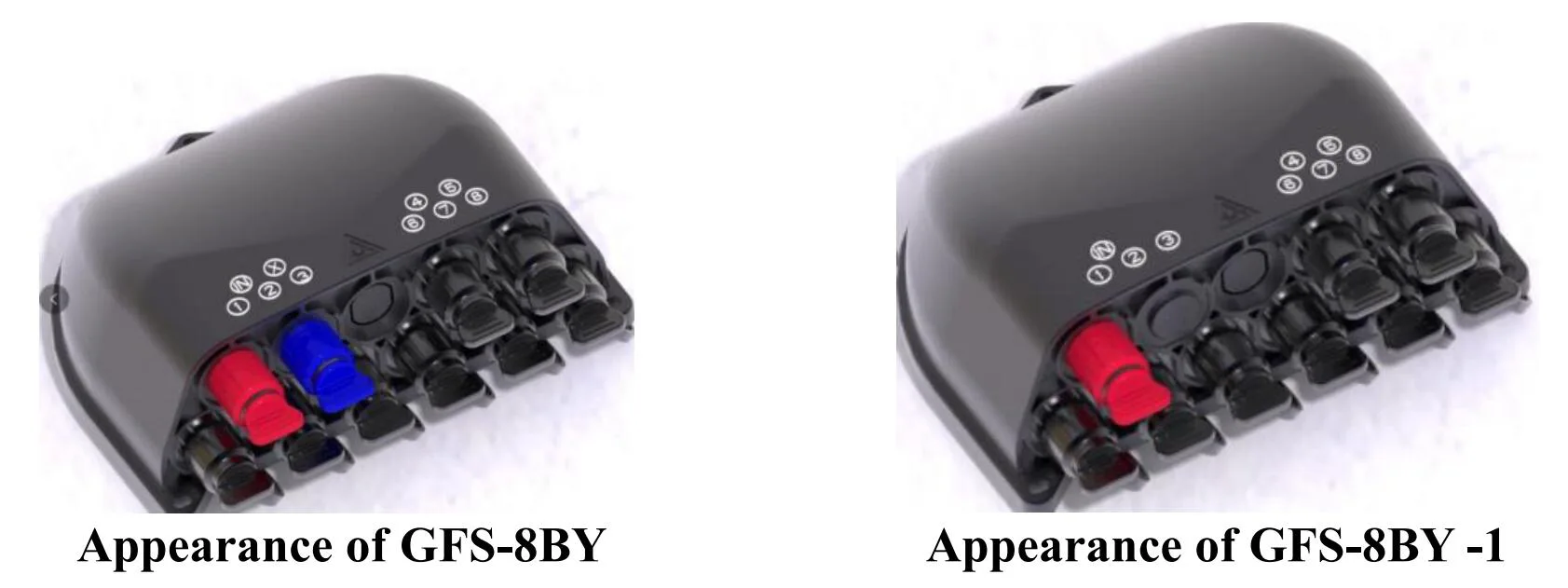

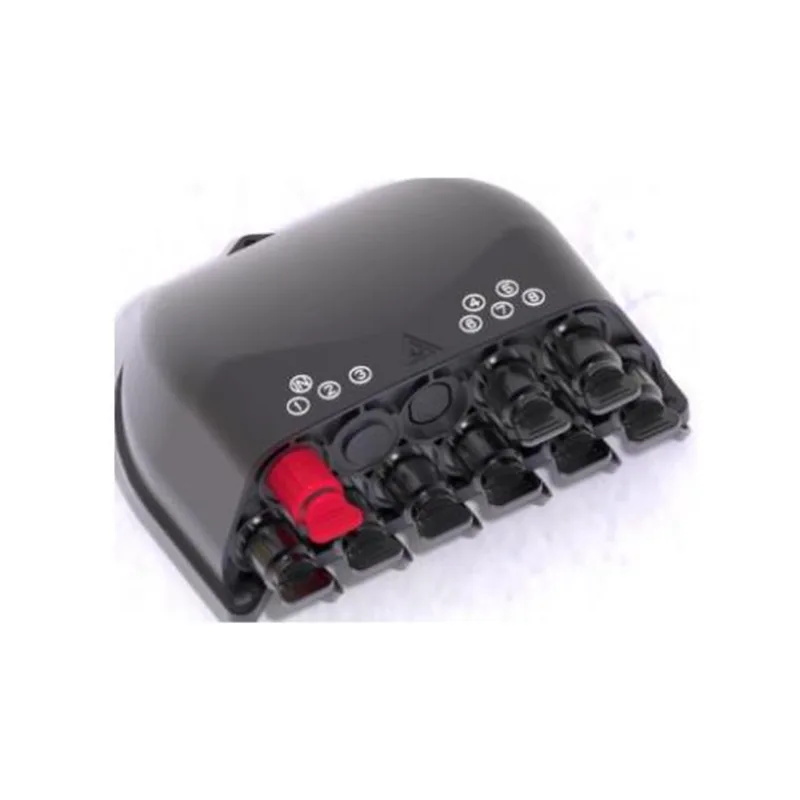

5. Mahsulot rasm

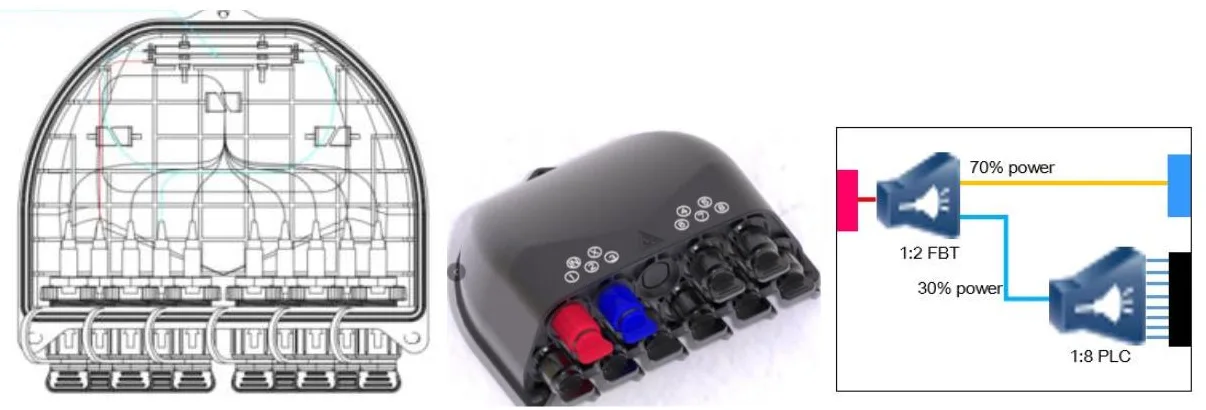

5.1 Mahsulot kabeli usullari:

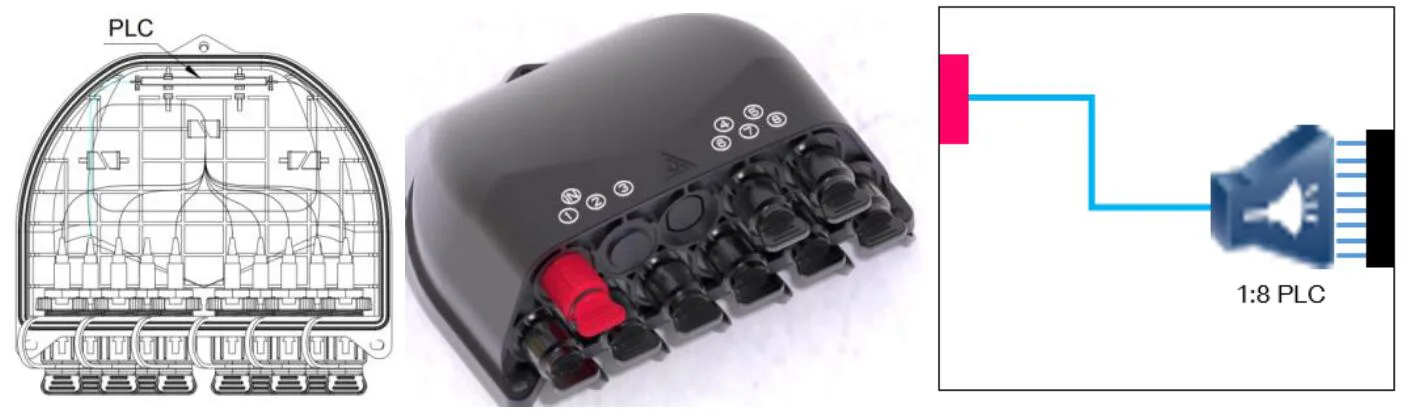

Plc tepasida, pastki qismida fbt

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

Gfs-8by (1 * 2 fbt + 1 * 8 plc Spteritter kabel usullari)

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

Gfs-8by-1 (1 * 8 plc spteritterning splitter usullari)

5.2 Konfiguratsiya

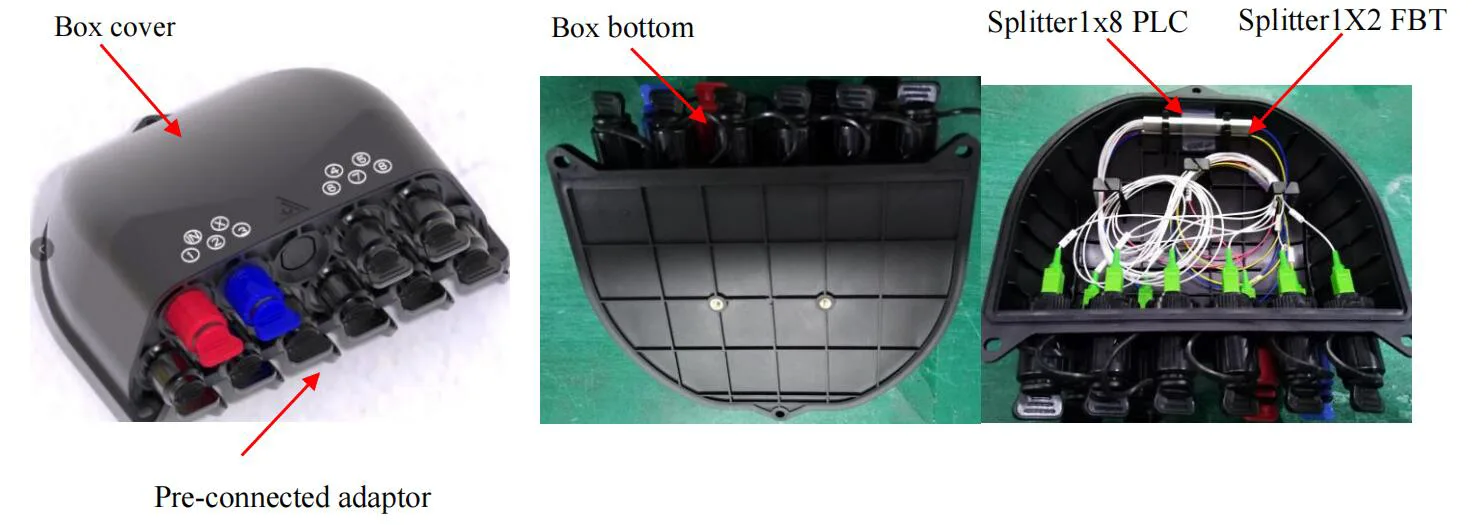

5.2.1 asosiy qismlar

Yo'q	Qism nomi	Birlik	Miqdori	Izoh
1	Pastki pastki	kompyuterlar	1
2	Quti qoplami	kompyuterlar	1
3	Oldindan ulangan adapter	kompyuterlar	10	Gfs-8bi
4	Oldindan ulangan adapter	kompyuterlar	9	Gfs-8b-1
5	Splitter1x2 FBT	kompyuterlar	1	Faqat gfs-8by-da o'rnatilgan
6	Splitter1x8 plc	kompyuterlar	1

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

5.2.2 Aksessuarlar

Yo'q	Qism nomi	Ma'lumot rasmlari	Birlik	Miqdori	Izoh
1	Foydalanuvchilar	/	kompyuterlar	1	Ichida
2	Spterter sinovi hisoboti	/	kompyuterlar	1	Ichida

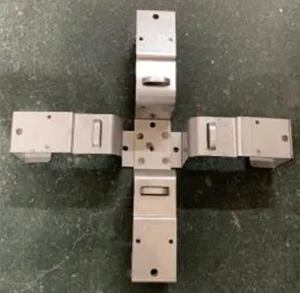

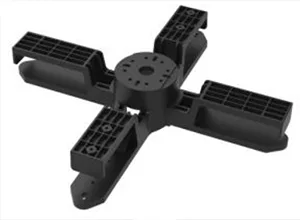

3	Devorga o'rnatilgan to'plam		sozlamoq	1	Mijoz sifatida ixtiyoriy talab qilmoq
4	Qutb o'rnatilgan to'plam		sozlamoq	1	Mijoz sifatida ixtiyoriy talab qilmoq
4	Qutb o'rnatilgan to'plam		sozlamoq	1	Mijoz sifatida ixtiyoriy talab qilmoq
5	Aerely o'rnatilgan to'plam		sozlamoq	1	Mijoz sifatida ixtiyoriy talab qilmoq
6	Kabel Saqlash tovushi		sozlamoq	1	Mijoz sifatida ixtiyoriy talab qilmoq
7	Kabel Saqlash tovushi		sozlamoq	1	Mijoz sifatida ixtiyoriy talab qilmoq

6. Atrof-muhit xususiyatlari

Ushbu mahsulot Roh ekologik himoya qilish bo'yicha ko'rsatmalariga va qo'rg'oshin, kadmiy, simob, hexavalent xromining mazmuni, polibriny Bipenyy (Pbde) dan oshib ketmagan (Pbde).

7. O'rnatish

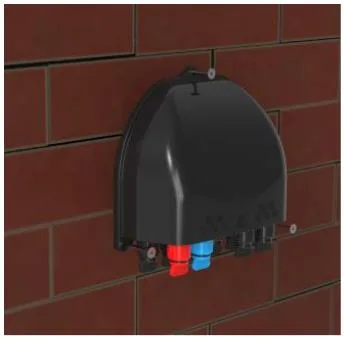

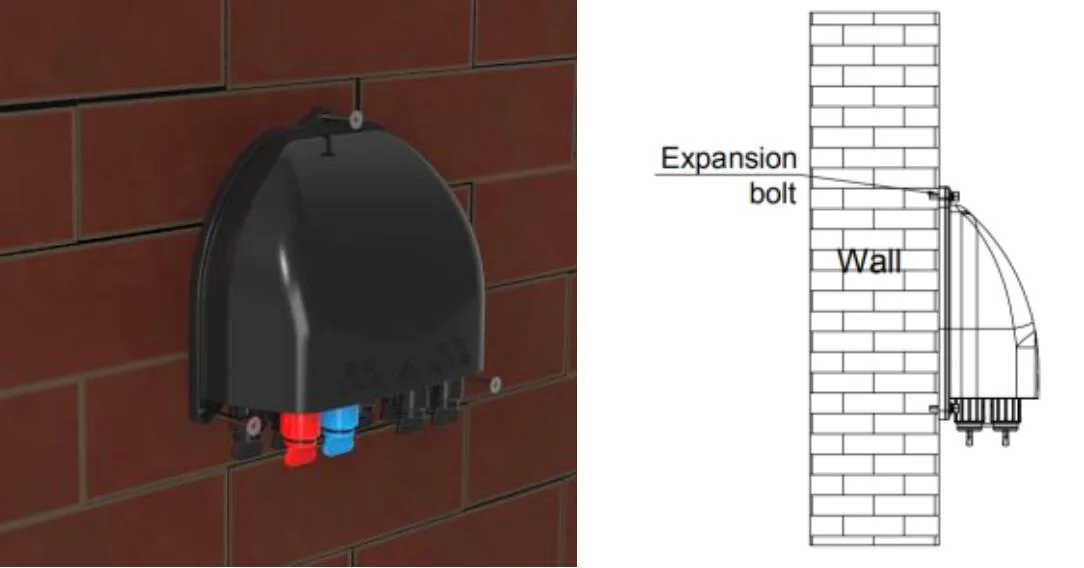

7.1. Devorga o'rnatiladigan o'rnatish

Devordagi 3 teshikli burg'ulash hajmi bo'yicha kengayish, kengaytirish plag plagin plag plag plaginini joylashtiring, qutilarni mahkamlang va mahkamlang.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

Devor o'rnatilgan o'rnatish

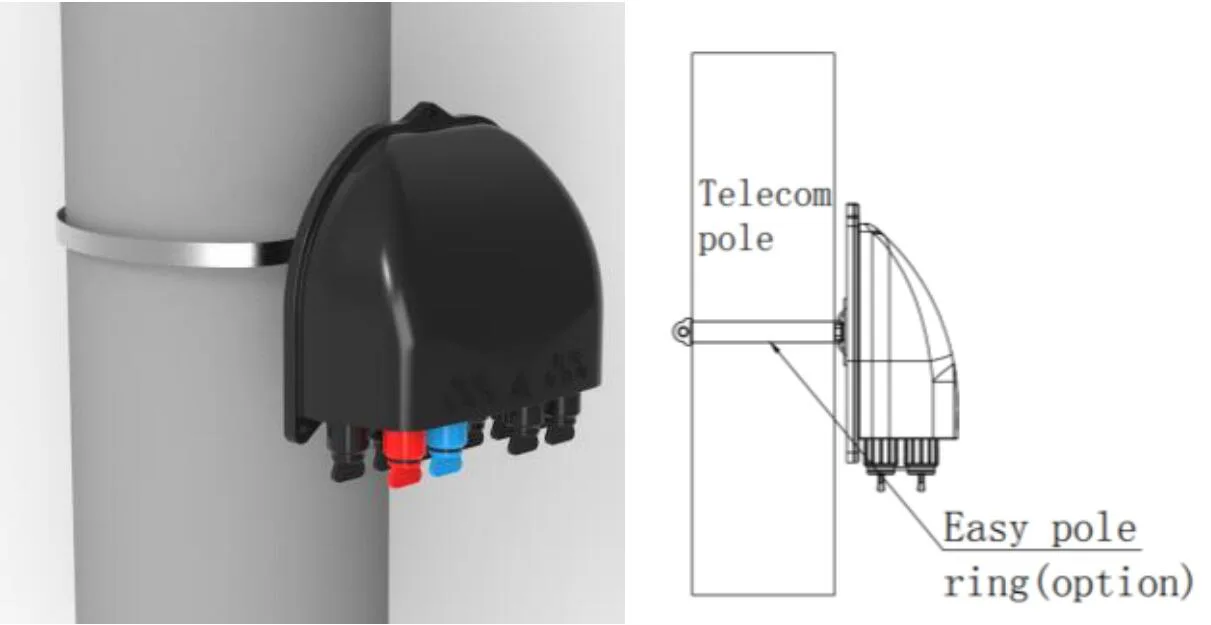

7.2. Qutbli o'rnatish

Orqa plastinkaning uyasi orasidan halqa uzukni o'ting va uni telekommunikatsiya qutbiga mahkamlang

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

Pole o'rnatilgan o'rnatish

7.3. Devorga o'rnatiladigan o'rnatish

Devordagi 4 teshikli teshikka aylantiring, tikuv kabeli o'rnatiladigan teshikka binoan kengaytirish plugining 8 * 40, teshiklarni moslang va mahkamlang vintlar bilan.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

Devorga o'rnatiladigan o'rnatish (tomchi kabelni saqlash paketi bilan)

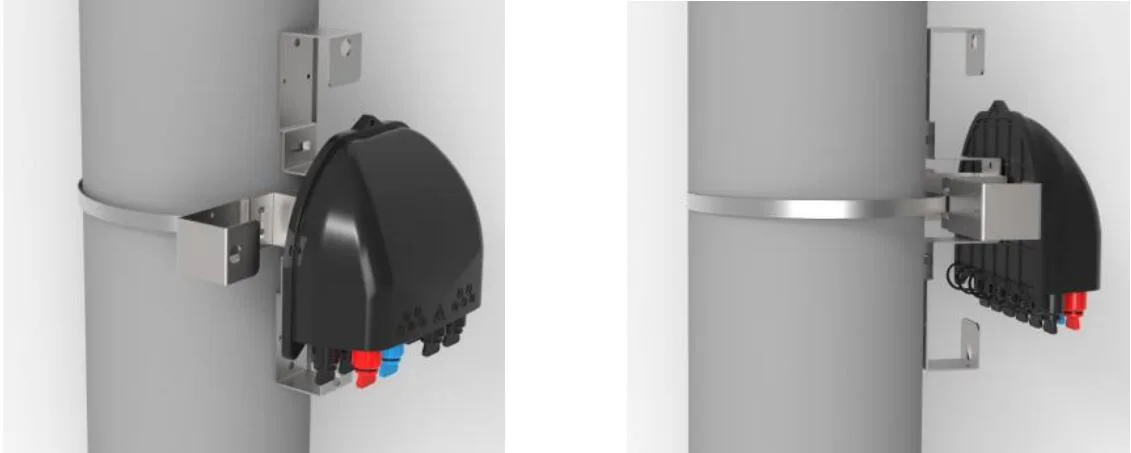

7.4. Qutbli o'rnatish (tomchi kabelni saqlash paketi bilan)

Zanglamaydigan po'lat kamarni bir tomchi kabelni saqlash patnisining uyasi orqali o'ting va uni qutbga soling.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

Qutbli o'rnatish (tomchi kabelni saqlash paketi bilan)

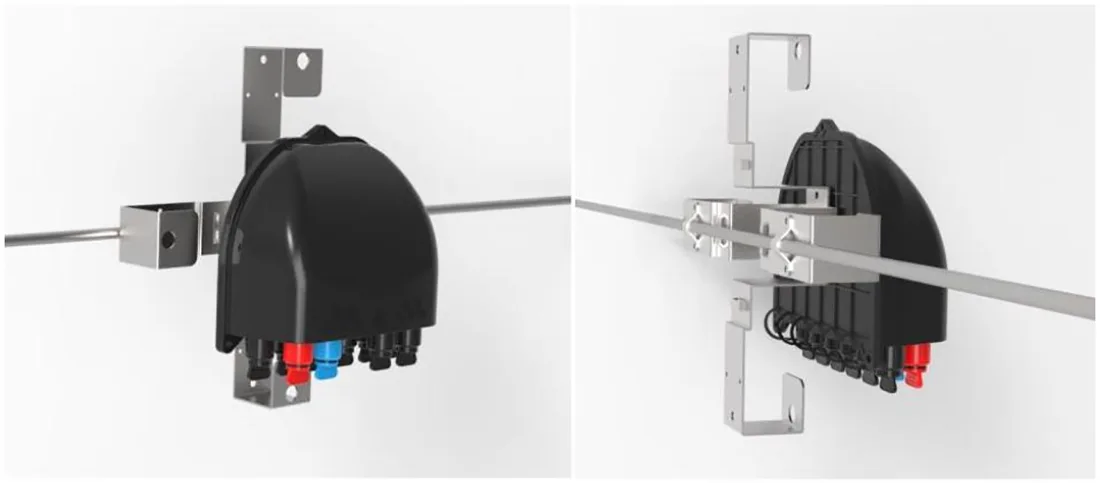

7.5. Aerelektsiyalash moslamalari (tomchi kabelni saqlash pikiligi bilan)

Messenger-ga tarqatish oynasini tuzatish uchun kichik metall plastinkadan foydalaning.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

Aerelektsiyalash moslamalari (tomchi kabelni saqlash pikiligi bilan)

8. Urug 'ishlashi

8.1 Oldindan ulangan adapter - a (e)

⚫ O'qni ulagichli ulagichning bir qismini aylantiring va chang qopqog'ini oling.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

⚫ Fiber ulagichining yuqoridagi qismidan yuqori, tola ulagichni rozetkaga joylashtiring va keyin o'qni aylantiring soat yo'nalishi bo'yicha bir qism.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

8.2 Oldindan ulangan adapter - b (XL)

Sc optik tola ulagichini bo'sh qismlarini o'z navbatida ulang va keyin adapterga ulang;

 XL-ni plastik kalitli adapterda oldindan ulangan adapterni o'rnating;

The Snap-ning vilkasini qaka ichiga joylashtiring;

⚫ Kabel qisqichlari o'rnatiladi va chiziq vilkaga yaqin bo'lishi kerak;

⚫ Teri kabeli qisqichbaqasimon pechkaning qopqog'ini burch

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

8.3 Oldindan ulangan adapter - c

The chang qopqog'ini olib tashlash uchun strelka yo'nalishi bo'yicha optik tolaga prefored vilkasiga suring. O'q yo'nalishi bo'yicha adapterdagi chang qopqog'ini olib tashlash uchun tugmani bosing.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

The Trafyorlangan vilkasini adapter qisqichbaqasi bilan mahkamlang. Ikki chang qopqoqlarini xuddi shu tarzda ulang.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

⚫ O'rnatilgan yig'imli vilka tog 'uzukni qisib qo'yadi va keyin asosiy tanani orqaga ajratish uchun orqaga torting.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

8.4 Oldindan ulangan adapter - d

 O'q hajmining soat yo'nalishi bo'yicha oldindan ulangan vilkasini aylantiring va strelka yo'nalishi bo'yicha oldindan ulangan vilka va chang qopqog'ini oching.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

⚫ Oldinga ulangan plug d va oldindan ulangan adapter d stent yo'nalishi bo'yicha ulang va soat yo'nalishi bo'yicha vilkasini mahkamlash uchun aylantiring.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

8.5 Oldindan ulangan adapter - e (a)

 STREMning soat miliga teskari tomonga o'ting va strelka yo'nalishi bo'yicha oldindan ulangan vilka va chang qopqog'ini oching

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

Tasma ulangan plug e va oldindan ulangan adapterni strelka yo'nalishi bo'yicha ulang va uni o'rnating.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

8.6 Oldindan ulangan adapter -f -f

Sc optik tola ulagichini bo'sh qismlarini o'z navbatida ulang va keyin adapterga ulang;

 XL-ni plastik kalitli adapterda oldindan ulangan adapterni o'rnating;

The Snap-ning vilkasini qaka ichiga joylashtiring;

⚫ Kabel qisqichlari o'rnatiladi va chiziq vilkaga yaqin bo'lishi kerak;

Teridagi charm kabel kabeli kelegichasini burim bilan vidalang.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

9. Paket

Buyum	Material	Hajmi (mm)	Miqdori	Yalpi vazn (kg)
Mustaqil mahsulotni qadoqlash	Karton	195x195x95	1	0.7
Tashqi qadoqlash karton	Karton	810x410x510	40	28.1
Eslatma: kabelni saqlashning tortagisiz
