● Turli tuzilmalarning tolalarini yamoq simlari
● Rolalarga (FTHTH) tarmoqlari uchun yuqori tezlikda optik yo'llar
● Minimal egish talablari bo'lgan kabellar
● Kichik optik komponentlar

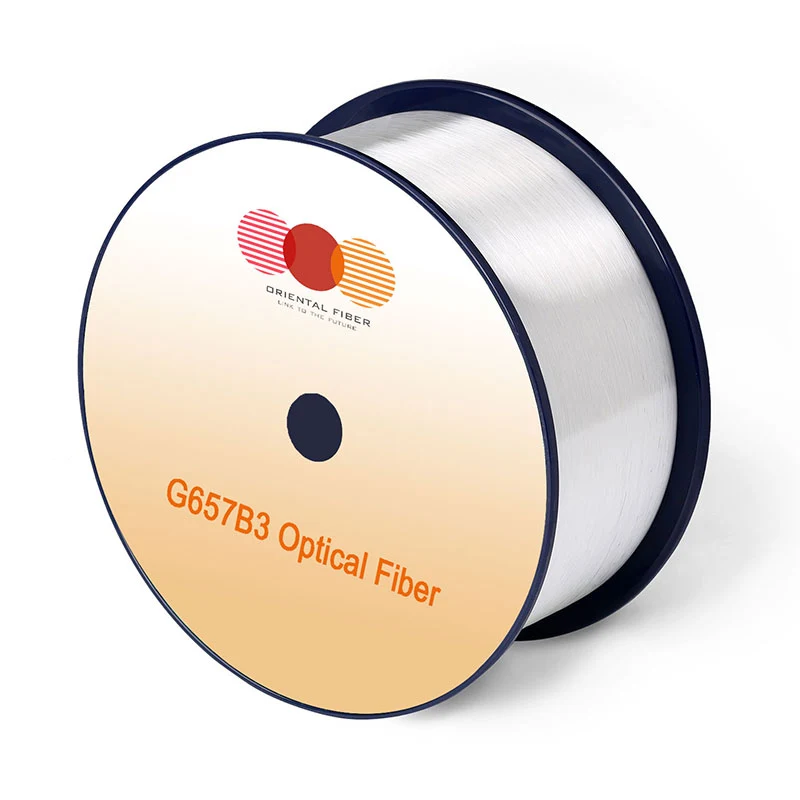

Optical performance is better than that recommended by ITU-T G.657.B3 and IEC 60793-2-50 B6.b3, with a bending radius as low as 5mm, which can meet the complex installation conditions in MDU and FTTH, such as corners, binding, high load tension, etc.
● Bilim uzilish radiusi 5 mm ga yetishi mumkin, bu barcha G.652.D optik tolalarga to'liq mos keladi
● O-E-E-S-C-l antumentining faoliyat talablariga javob beradigan past e'tiborga olish
● Optik kabel dizaynlarini, shu jumladan lenta kabellarini talab qiladigan kam bükme yo'qotish
● Aniq geometrik parametrlar va katta MFD pasayish va yuqori bo'linish samaradorligini ta'minlaydi
● Yuqori Nd yuqori qiymat, minimal darajadagi bükmening radiusida uzoq vaqt xizmat ko'rsatish hayotiga bag'ishlangan
|
Xususiyatlar |
Shartlar |
Spesi fi Ed qadriyatlar |
Birliklar |
|
|
Optik Xususiyatlar |
||||
|
Ziqna |
1310NM |
≤0.35 |
[db / km] |
|
|
1383nm (H2ADDANDANDANDAN) |
≤0.35 |
[db / km] |
||
|
1550nm |
≤0.21 |
[db / km] |
||
|
1625nm |
≤0.23 |
[db / km] |
||
|
Ziqna vasi to'lqin uzunligi Maks. a di ff yo'qogi |
1285-1330nm, ichida 1310NM ga murojaat qilish |
≤0.03 |
[db / km] |
|
|
1525-1575n m, 1550NM ga murojaat qiling |
≤0.02 |
[db / km] |
||
|
Nolga teng Dumpsiya to'lqin uzunligi (l0) |
- |
1300-1324 |
[nm] |
|
|
Nolga teng Dispersiyaning qiymati (S0) |
- |
≤0.092 |
[Ps / Nm2 k km)] |
|
|
Pmd |
Maksimal Individual tola |
- |
≤0.1 |
[Ps / √km] |
|
Link Dizayn qiymati (m = 20, q = 0,01%) |
- |
≤0.06 |
[Ps / √km] |
|
|
Odatiy Qiymati |
- |
0.04 |
[Ps / √km] |
|
|
Kabel FF to'lqin uzunligi (ENERCC) |
- |
≤1260 |
[nm] |
|
|
Rejimi Dala diametri (MFD) |
1310NM |
8.2-9.0 |
[mkm] |
|
|
1550nm |
9.1-10.1 |
[mkm] |
||
|
E ff istik guruh indeksi sinish (FF) |
1310NM |
1.468 |
- |
|
|
1550nm |
1.469 |
- |
||
|
Nuqta Qutqaruvlar |
1310NM |
≤0.05 |
[db] |
|
|
1550nm |
≤0.05 |
[db] |
||
|
Geometrik Xususiyatlar |
||||
|
Yalang'och Diametri |
- |
125.0 ± 0,7 |
[mkm] |
|
|
Yalang'och Aylanma bo'lmagan |
- |
≤0.7 |
[%] |
|
|
Qoplama Diametri |
- |
235-245 |
[mkm] |
|
|
Qoplama Konsentriklik xatosi |
- |
≤12.0 |
[mkm] |
|
|
Qoplama Aylanma bo'lmagan |
- |
≤6.0 |
[%] |
|
|
Yalang'ochlash Konsentriklik xatosi |
- |
≤ 0.5 |
[mkm] |
|
|
Kurl (radius) |
- |
≥4 |
[m] |
|
|
Yetkazib bermoq Uzunligi |
- |
Yuqoriga 25.2 gacha |
[km / reel] |
|
|
Atrof-muhit xususiyatlari |
1310NM, 1550nm va 1625nm |
|||
|
Harorat Qaramlikning inqirozi |
-60 ℃ + 85 ℃ |
≤0.05 |
[db / km] |
|
|
Harorat namlik Velosipedni kuchaytirish |
-10 ° C + 85 ° C gacha, 98% RH |
≤0.05 |
[db / km] |
|
|
Ser Qaramlikning inqirozi |
23 ° C, 30 kun |
≤0.05 |
[db / km] |
|
|
Nam Issiqlik qaramligi buzilgan |
85 ° C va 85% RH, uchun 30 kun |
≤0.05 |
[db / km] |
|
|
Quruq Issiqlik qarish |
85 ℃, 30 kun |
≤0.05 |
[db / km] |
|
|
Mexanik Spekti fi kation |
||||
|
Isbot Test |
- |
≥9.0 |
[N] |
|
|
- |
≥1.0 |
[%] |
||
|
- |
≥100 |
[KPSI] |
||
|
Makro-egilish Yomon yo'qotish |
1 Mandrel atrofida aylaning 10 mm radiusi |
1550nm |
≤0.03 |
[db] |
|
1 10 mm radiusning mandelini aylantiring |
1625nm |
≤0.1 |
[db] |
|
|
1 7,5 mm radius mantrini aylantiring |
1550nm |
≤0.08 |
[db] |
|
|
1 Mandrel atrofida aylaning 7,5 mm radiusi |
1625nm |
≤0.25 |
[db] |
|
|
1 5 mm radiusning mandel atrofida aylanadi |
1550nm |
≤0.15 |
[db] |
|
|
1 5 mm radiusning mandel atrofida aylanadi |
1625nm |
≤0.45 |
[db] |
|
|
Qoplama Chiziq kuchi |
odatiy O'rtacha kuch |
1.5 |
[N] |
|
|
cho'qqi kuch |
1.3-8.9 |
[N] |
||
|
Dinamik Charchoq parametrlari (nd) |
- |
≥20 |
- |
|
